THE ULTIMATE UPGRADE RANGE FOR YOUR ELECTRIC MOTO BIKE

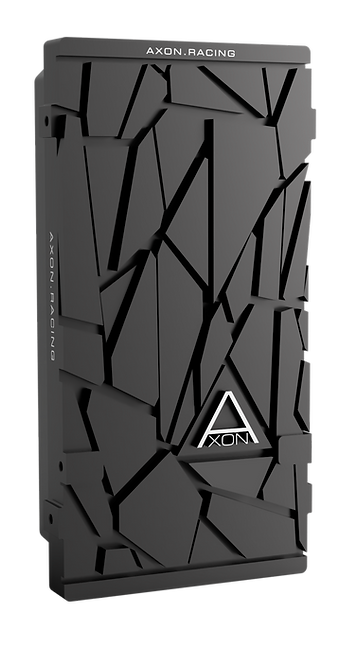

AXON PHASE CONTROLLER SPECS
CONTROLLER FEATURE SET
-Casing- Full CNC heatsink with injection moulded plastic rear (fully potted).
-Peak Output Power 46KW.
- 30 x Infineon 100V mosfets.
-Max DC Current 500A.
-Max Phase Current 1000A.
-Simple Fitting using adapted harness.
-Regen Braking with thumb trigger throttle.
-Full colour display with multiple functions.
- Ip 67 Waterproofing.
-Full android and IOS app with telemetry reporting.
- Built in Gyro control with Angle modes.
- TorqueMAP FOC.
-Three fully customizable speed / power modes.
-Community hub with telemetry reporting for top speed and 0-60 race modes. Including community and bike leader boards and profiles.
-BMS boost function for unlocking more power without modifying hardware, or bypassing your battery.
Image taken from AXON phone app.
22S CAPABLE
up to
AXON RACING - CONTROLLER
GET MORE POWER FROM YOUR STOCK BATTERY WITH OUR BMS BOOST MODE
(BELOW ARE SOME CONSERVATIVE VALUES FOR THE EXTRA YOU GET FROM USING AXON BOOST MODE)

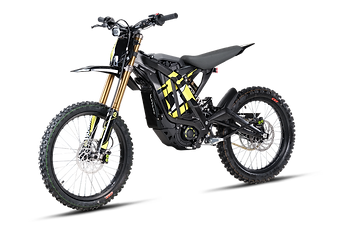

SUR-RON LIGHT BEE
OLD 6KW MODELS
STOCK DC AMPS
90A
WITH AXON BOOST
120-140A
2025 8KW MODELS
STOCK DC AMPS
130A
WITH AXON BOOST
160-180A
SUR-RON ULTRA BEE
PRE 2025 MODELS
STOCK DC AMPS
170A
WITH AXON BOOST
200-220A
2025 MODEL
STOCK DC AMPS
tbc
WITH AXON BOOST
tbc
TALARIA STING
MX3
STOCK DC AMPS
100A
WITH AXON BOOST
120-140A
MX4
STOCK DC AMPS
130A
WITH AXON BOOST
150-170A

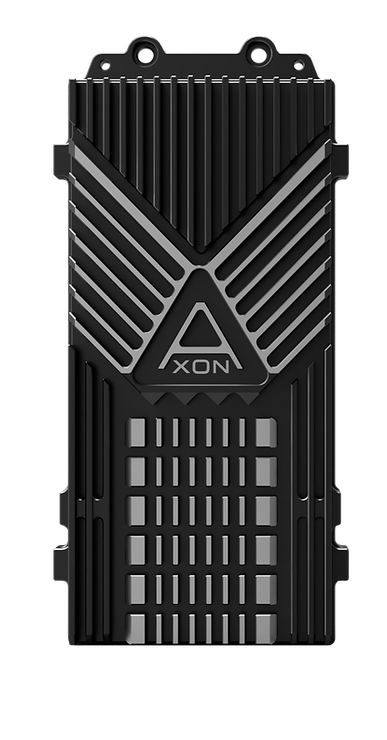

AXON RACING - HIGH VOLTAGE CONTROLLER
THE ULTIMATE CONTROLLE FOR YOUR E-BIKE WITH UNMATCHED POWER
CONTROLLER FEATURE SET
-Casing- Full CNC heatsink with injection moulded plastic rear (fully potted).
-Peak Output Power 80KW.
- 48 x High Quality 160V mosfets
- Supports up to 32S
-Max DC Current 600A.
-Max Phase Current 1000A.
-Simple Fitting using adapted harness.
-Regen Braking with thumb trigger throttle.
-Full colour display with multiple functions.
- Ip 67 Waterproofing.
-Full android and IOS app with Telemetry reporting.
- Built in Gyro control with Angle modes.
- TorqueMAP FOC.
-Three fully customizable speed / power modes.
-Community hub with telemetry reporting for top speed and 0-60 race modes. Including community and bike leader boards and profiles.
-BMS boost function for unlocking more power without modifying hardware or bypassing your battery.
32S CAPABLE
up to
AXON SHOCK CONTROLLER SPECS
Image taken from AXON phone app.
OTHER AXON PRODUCTS
MOTORS & BATTERIES
AXON RACING - WHAT WE OFFER
SELECT YOUR BIKE TO SEE THE AXON PRODUCTS AVAILABLE.
High precision encoder for ultra smooth and refined operation.
Full CNC construction - Not cast like other brands - made by us not a rebrand.
82mm stator - The largest stator available for an Ultra Bee Upgrade motor.
Up to 100Nm of torque using our custom stator design for excellent power delivery.
PEAK POWER
55KW
Up to 55KW peak power (46kw on the Axon Phase controller).
Shipping from Japan
$1049 USD
DESIGNED FROM THE GROUND UP BY AXON ENGINEERS - NOT OEM FROM ANOTHER MANUFACTURER. HUNDREDS OF DOLALRS CHEAPER THAN SOME OF THE WELL KNOWN BRANDS.

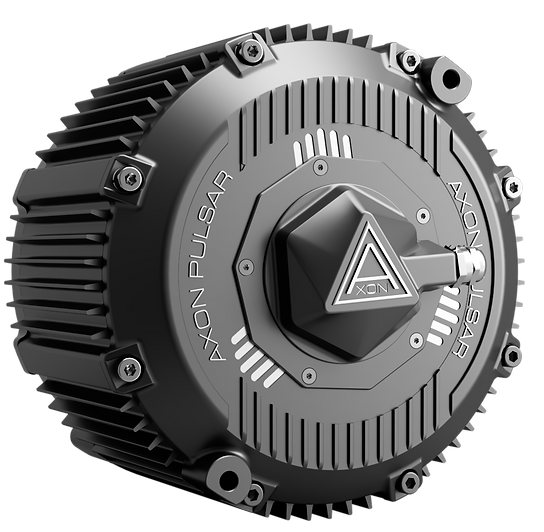

AXON PULSAR 82 MOTOR SPECS
.png)

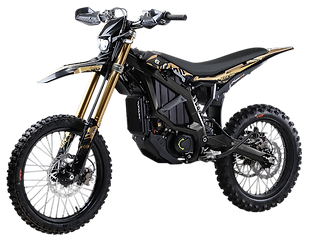

Ultra Bee
AXON SUR-RON UPGRADE BATTERY
